Name: MAG B850 TOMAHAWK MAX WIFI II
Brand: MSI Poland
SKU: 911-7E62-015
Price: 1269.0 PLN
Availability: InStock

MSI Poland

MAG B850 TOMAHAWK MAX WIFI II

1.269,00 zł

Obsługuje procesory desktopowe AMD Ryzen™ serii 9000 / 8000 / 7000
Obsługa pamięci DDR5, Dual Channel DDR5 8400+ MT/s (OC)
Ultrawydajność: 14+2+1 Duet Rail Power System 80A SPS, podwójne 8-pinowe złącza zasilania CPU, Core Boost, Memory Boost, 8-warstwowe PCB wykonane z pogrubionej miedzi 2oz i materiałów klasy serwerowej
Frozr Guard: Extended Heatsink, podkładki termiczne MOSFET o przewodności 7W/mK, dodatkowe podkładki termiczne na dławikach oraz EZ M.2 Shield Frozr II zostały stworzone z myślą o wysokiej wydajności systemu i nieprzerwanej pracy
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release i EZ Antenna
Błyskawiczne wrażenia w grach: gniazdo PCIe 5.0, Lightning Gen 5 x4 M.2, przedni USB Type-C
5G LAN z rozwiązaniem Wi-Fi 7: najnowsze rozwiązanie do zastosowań profesjonalnych i multimedialnych, zapewniające bezpieczną, stabilną i szybką łączność sieciową oraz transmisję danych
Audio Boost 5: zapewnij swoim uszom studyjną jakość dźwięku i jeszcze lepsze wrażenia w grach

Tabela specyfikacji

Chipset	AMD B850
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
Storage	4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot. * Please refer to the manual for M.2 SSD heatsink restrictions
RAID	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN	Realtek^® 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 6x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x BCLK Frequency Jumpers(JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED

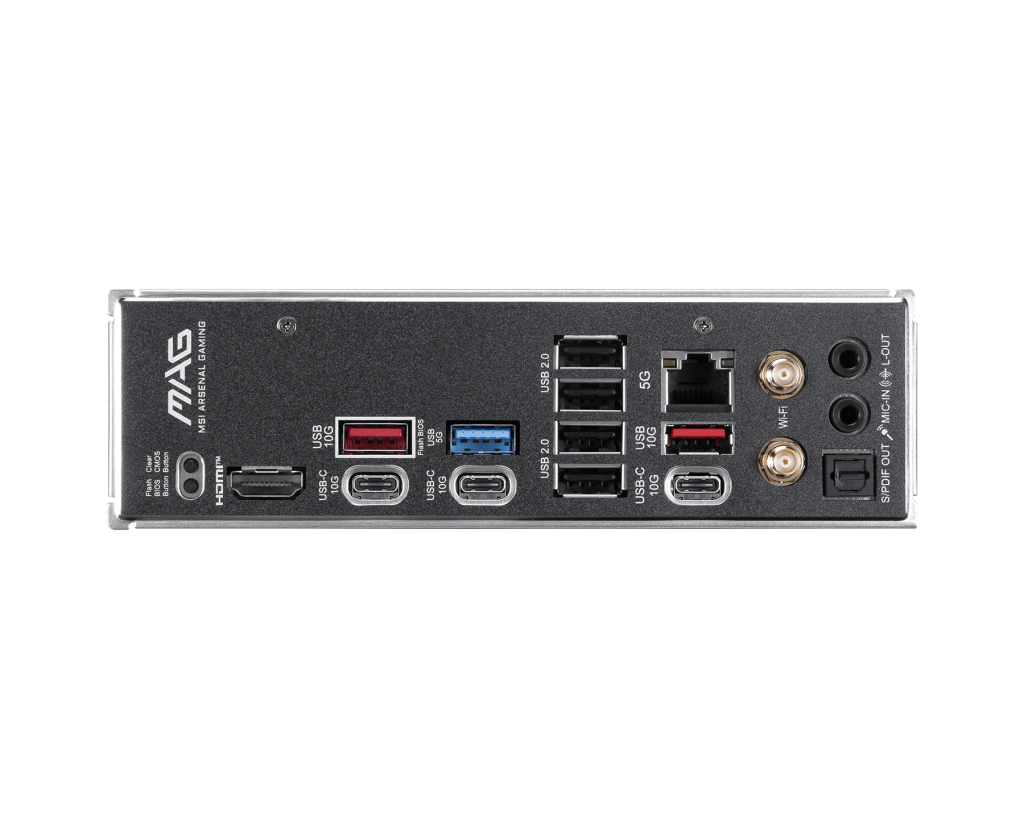

BACK PANEL PORTS	Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF-OUT
OPERATING SYSTEM	Support for Windows^® 11 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm
